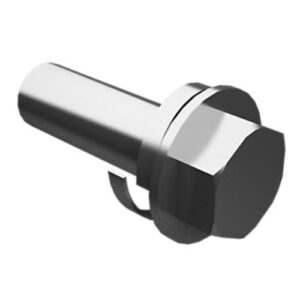

Bulon – 9B7237 – Caterpillar Alternativo

9B7237 Caterpillar

Nombre del producto: “9B7237”

Especificaciones técnicas para el número de pieza 9B-7237:

• Longitud del perno (pulg): 1 1/4
• Tipo de perno: perno de cabeza hexagonal
• Altura de la cabeza (pulg): 0,29
• Recubrimiento: Zinc lamelar
• Longitud de asa (pulg): 0,25
• Mando (pulg): 9/16
• Rosca: Rosca gruesa UNC
• Material: Acero
• Descripción del material: SAE J429 grado 8.
• Marcado de cabeza: 6 líneas radiales (resistencia a la tracción superior de 150 ksi)
• Tamaño de rosca (pulg: TPI): 3/8-16
• Grado: 8
• Longitud total del perno (pulg): 1 1/4
• Tamaño del perno (pulg): 3/8
• Ancho de la cabeza (pulg): 0,56
• Altura de la cabeza (pulg): 0,29
• Acabado: Revestimiento de zinc
• Paso de rosca del orificio: 16
• Longitud de asa (pulg): 0,25
• Hand of Thread: RH
• Clase o Grado: SAE J429 Grado 8 (150 ksi)

MODELOS COMPATIBLES:

INTEGRATED TOOLCARRIER IT12 IT28 IT18 IT28G IT28B IT18B WHEEL HARVESTER 550B 570B 560B 580B 550 570 580 GEN SET-MILITARY 3608 MINI HYD EXCAVATOR 304CR 304.5E2 304.5 303.5CR ROTARY DRILL MD6310 MD6250 MD6200 MD6380 TRACK FELLER BUNCHER 522 521 521B 522B HARVESTER HEAD SAT214 EXCAVATOR 330 L 320-A L 215B 320-A S 215C 320-A N 215D 375-A L 325-A 320D2 322N 322-A LN 548 219D 558 313 350 L 330-A L 231D 385B 320N 320D 235B 235C 235D 350-A 568 FM 320D FM 320B LL 313D2 LGP 330-A 225B 225D 330B LN 330-A L 350-A L 229D 325-A L 322 L 320B FM LL 245D 330B 245B 320 L 325-A FM L 330B L 325 L 313D2 322-A L 322-A N 229 225 235 568 FM LL 322 LN 320-A 219 215 375-A 245 PUMP POWER END WSP255 COMPACT TRACK LOADER 299D3 299D3 XE ROTARY MIXER RM500B PETROLEUM ENGINE 3508C 3508B C9 C7 C175-16 3516 3512 C15 C13 C18 C11 C27 2016 C32 3516C 3516B C280-12 3512E 3512C 3512B SOIL COMPACTOR 815 815B 815F 825H 825G 825C 815F II 825G II PETROLEUM TRANSMISSION TH55-E70 CX48-P2300 TH48-E70 TH55FT-E90 BACKHOE LOADER 450E CONTROL, GUIDANCE, MONITORING, AND TECHNOLOGY PRODUCTS COMMAND PETROLEUM GEN SET C27 C15 C18 C32 3512B 3512C WHEEL LOADER 960F 988 XE 986K 962K G926 G910 988B 988G 988H 988F G916 988K 966D 966C 966F 966E G936 966H 966G 966K 966R 926E 928G 988F II 986 988 994 990 993 992 916 920 980G II 988K XE 926 930 936 950 950B/950E 990H 938G II 993K 992D 992C 992G 992K 994F 994D 970F 994H 966G II 972G 972H 972K 950B 950E 950F 950K 930R 930T 936E 936F 938G 938F 990 II 980F II 966F II 972G II 980C 980F 980H 980G 980K 950F II FORWARDER 554 574 INDUSTRIAL TRACTOR HA771 HA871 TK381 TK371 ARTICULATED TRUCK D35HP D30C D30D D35C D250E D250D D250B D400E II D300E II D550B D400E D400D 725 740 735C 735B 730 735 OEM 735 D44B D20D D250E II D25D D25C D350E D350D D350C D350E II D300E D300D D300B 740C 740B 745C D400 D40D WHEELED EXCAVATOR W330B M325B ENGINE – INDUSTRIAL CG170-16 LD700E 3512B 3406B 3406C 3516B XQ20 3561B INDUSTRIAL ENGINE 3126 3126B 3116 3114 3304 3306 3512 3516 C-12 C-15 C-10 C-16 3508 C7 C9 G3520H C1.5 3304B 3412E 3412C D342C C32 C27 C18 C280-16 3456 3176C 3176B C175-16 3412 3406 3508B D398 D379 3516B 3516C 3406E 3406B 3406C D342 D343 D398B 3408E 3408B 3408C 3512E 3512B 3512C D333C 3196 D353C D353E D353D C-9 C11 C13 C15 D330C D379B WHEEL SCRAPER 621E 621G 621F 623G 623F 623E 627G 627F 627B 627E 651E 631G 631E 633E 657G 657E 657B 637K 613C 637E 637G 637D 615C 615 611 613C II 657 QUARRY TRUCK 777E 775D 775B 773E 771D 771C 772G 770G TRACTOR 784C 784B 768C 772B 776 776D 776C 776B GAS ENGINE G3306 G3512H G3512E G3512J G3612 G3616 G3412 G3408B G3516E G3408 G3406 G3516C G398 G399 G342C G343 G3520B G353D G3512 G3516 G3508 TRAILER VFS70 VFS50 PUMPER SPP101 SBF214 SPS342 SPS343 SPF343 SCT673 CPT372 SPF743 SPF343C SPT343 SPT342 SUF557 TRANSMISSION-ONHIGHWAY CX28 POWER MODULE XQC1200 3516B 3516C XQC1600 XQG400 PM3456 PM3412 TR43-C18L PMG3516 XQ35 XQ2280 PP3516 C32 PM3508 PM3516 PM3512 SITE PREP TRACTOR 586C 2864C OFF HIGHWAY TRUCK 777G 777E 796 AC 794 AC 773GC 798 AC 785D 789G 789D 3508B 772 770 793D 777 775 773 793F 789 785 793 798 OEM SOLUTIONS 3412C PUMP WS255 XD WS255 SS MOTOR GRADER 135H 130G 140K 2 135H NA 140H ES 12H NA 120H ES 140H NA 24H 24M 160K 160H 160G 16H NA 12H ES 14H NA 120H 120G 24 120B 120K 120 GC 140B 163H 140M 140K 140H 140G 143H 140 GC 163H NA 120H NA 18M3 160H ES 16M 160 16H 16G 140 16GC 14H 14G 12H 12G 12M 12K 120 12E 160H NA 16M3 120K 2 HYDRAULIC SHOVEL 6020 6015 6020B 6015B 6060 KNUCKLEBOOM LOADER 539 TRANSMISSION-MILITARY CX28 MARINE ENGINE C32 MARINE 3306 C9 D353E 3516 3512 D353C D353D C18 MARINE 3508 C18 C12 D379A D379B C15 3408B 3408C 3406B 3406C 3406E D398A D398B 3516B 3516C 3516E 3512C 3512E C280-16 C280-12 C32B 3512B D333A D333B D333C 3208 C30 C32 C9.3 3412 3408 3406 D342C 3508C 3508B D342 D343 D334 C175-16 3306B 3412C 3412E 3412D C280-6 C280-8 LOG LOADR FORST MACH 558 FRONT SHOVEL 235C 5080 5090B ENGINE – GENERATOR SET C1.5DE13.5 PETROLEUM PACKAGE TH48-E80 TH48-E70 CX35-P800 3508 TH48 TH55 CX31-C11I CX48-P2300 CX31-C15I CX31-C13I C18 CX31-C18I TH35-C15I RIPPER SCARIFIER 140G 12G 16G 130G SOIL FINISHER TL4 45 TL4 42 TL4 31 TL4 36 TL4 24 TL4 27 RECLAIMER MIXER RM400 RM-350B RM-350 RM800 RM500B RM-300 RM-250C ENGINE C175-16 C32 MARINE 3512E 3512C G3516C G3516H 3516E G3406 G3408 3126 C15 C18 G3520 3512PETROL LOCOMOTIVE ENGINE 3512 3516C 3516B 3612 3512E 3512C 3512B PR20B C175-16 C175-20 C32 3508C 3508B COLD PLANER PM820 PM825 PM822 PR-750B PM-565B PR-1000 PR-450C PM-465 PM-201 PR-1000C PR-450 PM-565 ELECTRIC ROPE SHOVEL 7495 HF 7495 GEN SET ENGINE 3406C 3406E 3406B 3408B 3408C 3608 3606 3516B 3512B 3456 3412 3208 3412C D399 3612 3616 DE800S 3406 3408 D398B DE1100 3304B 3306B POWER SYS G3520 G3516C G3516B C15 GEN SE G3512 3508B 3116 3114 3306 3304 D379B 3508 C280-16 3512 3516 RIPPER 953B D5 977 963 953 951 955 943 11 10 3 7 6 5 4 9 8 SKID STEER LOADER 272D3 272D3 XE WHEEL FELLER BUNCHER TK370 573C 573D TK380 HA870 553C 2570C 2570D HA770 563C 563D 543 533 2470C 2670C 2670D POWERTRAIN TR43M44-C13B TRACK-TYPE LOADER 977K GENERATOR SR4B SR4BHV SR500 SR4 SR5 LC51XX TRUCK ENGINE 3114 3116 C15 3208 WHEEL TRACTOR-SCRAPER 627 637 631 631K 613G 637K 627K LRC 627K 657 TRACK SKIDDER 527 517 D4HTSK II D5HTSK II D4HTSK III ASPHALT COMPACTOR CB7 CB10 WHEEL SKIDDER 518C 535C 535B 545C 528B 525C 525B 525 518 515 528 545 530B 508 RETROFIT AFTERTREATMNT TWC DOC UNDERGROUND ARTICULATED TRUCK AD22 TOWED SCRAPER TS185 TS180 TS225 WATER FORDING TRACTOR D7R II WHEEL TRACTOR 623B 623G 623E 623F 621B 621R 621E 621F 621G 621S 627G 627H 627E 627F 633E II 651B 651E 631K 615C II 631D 631E 631G 613C II 615 611 657E 657B 633D 657G 639D 615C 637G 637D 613C 637E 637K HYDRAULIC CONTROL 193B 163 143 183B 153 141 140 VEHICULAR ENGINE 3512 FIELD CULTIVATOR TL5 50 TL5 48 TL5 30 TL5 34 TL5 32 TL5 38 TL5 36 TRACK LOADER 933C 935C 935B 939C 973C 973D 951C 951B 953B 953C 953D 977K 953K 931B 931C 955K 955L 963 973 983 939 933 943 941 953 963D 963B 963C 963K 941B 931C II 935C II WHEEL DOZER 854G 854K 834G 834H 834B 834K 814B 814F 844H 834 844 854 824H 824G 824C 814F II 814 824G II LANDFILL COMPACTOR 836 826G II 816F II 816 826C 826G 826H 836H 836G 836K 816B 816F GRAPPLE 518 120C 125C TELEHANDLER TL1055 TL1255 TH255C TL1255C COMPACT WHEEL LOADER 910 SOIL STABILIZER SS-250B SS-250 WAGON 613C II ASPHALT SCREED 8-16B AS2252C 10-20WB AS2251 10 FT 8 FT 10B 10-20B AS2302 AS2301 RAKE-POWER BOX PR172 PR184 LOGGER 227 BULLDOZER 834U 834S 6 8SU D5C PAT 10SU 6SU D5C PATLGP 11U 10U 824S 825 9SU 7SU 11SU 7S LGP 8S 8U 9C 9U 9S 4S 4P 5A 5P 5S 6A 6S 7A 7S 7U 8A 3S 5A PAT 3P 4A FELLER BUNCHER FB518 UNDERGROUND ART TRUCK AE40 AE40 II AD45B AD60 AD55 AD63 AD30 AD45 AD40 AD22 AD55B LOAD HAUL DUMP R1600G R1600H R1700 II R1300 R1600 R2900 R2900 XE R1300G II R1700G R3000H R2900G R1300G IN-LINE RIPPER TL2 530 TL2 730 MATERIAL HANDLER MH3037 MH3049 MH3059 WINCH 53 57 56 55 54 59 58 528 518 54H 57H 56H 59N 59L 58L ROTARY CUTTER RC7 RC20 BACKHOE D3 931 TRACK-TYPE TRACTOR D6G2 LGP D3C II D10 D11 D8 GC D6R II D3C III D3G D3B D3C D4B D4G D4H D4C D4D D4E D5B D5C D5H D5E D5G D6E SR D6C D6D D6R D6T D6M D6N D6K D6E D6G D6H D7E D6G SR D4K2 LGP D6 XE D3K2 LGP D4E SR D4K2 XL D7R XR D6T LGP D6GC D3K2 XL D6R XL D4C III D6K2 XL D6T XW D6T XL D5C III D8GC D7R D7F D7G D7H D8T D8R D8L D8N D8H D9G D6K XL D9T D9R D9L D9N D6T XW PAT D6G2 XL D6K2 D5K XL D6R LGP D5K LGP D6D SR D6R III D6H II D6XE D4K XL D9 GC D4H III D7R SERIES D6K2 LGP D6F SR D3K XL D9 D2 D1 D3 D6 D5 D8 D7 D4K LGP D5K2 LGP D10N D10R D10T D11N D11R D11T D6H XL D6H XR D7R LGP D6T LGPPAT D5H XL D7G2 D6K LGP D10T2 D6R STD D8R II D6T XL PAT DEUCE D4H XL D4C II D5K2 XL D7R II D3K LGP ASPHALT PAVER AP1055 AP655 BG-240C BG555E AP-900B PE636 BG-260D BG-260C AP600 AP500F AP655F BG1000E AP-500E BG-2455D BG-2455C AP-1000B AP-1000E AP-1000D AP-1000F AP-555E BG-230 AP-200B BG-210B BG600D BG-2255C BG-230D AP-800 AP500 AP-1050B AP-800D AP-800C AP-800B AP555F AP-600D AP-200 AP600F AP-655C AP-655D AP-650B AP-1050 BG1055E AP-1055B AP-1055F AP-1055D AP-1055E AP-1000 BG-225C AP555 BG655D BG-245C BG500E AP1000 MARINE AUXILIARY 3512 3508 3516C 3516B 3512C 3512B C32 3508B 3508C PIPELAYER 587T 587R 578 561N 561M 561H PL83 PL87 PL72 PL61 583T 583R 572R II 572R 572G 589 STABILIZER MIXER SM-350 MINING EXCAVATOR 5110B 5230 VIBRATORY COMPACTOR CS-431C CP-533D CP-533C CS-433C CS-433B CP-663E CS-653 CS-643 CB-534B CB-634 CB-614 CB-434B CB-434 CP-643 CS-583C CS-583D CP-653 CS-563C CS-563D CS-573 CS-583 CS-553 CS-551 CS-663E CS-323 CS-531D CS-563 CS-531C CS-533 CS-531 CP-433C CP-433B CS-533C CS-533D CP-563D CP-563C CB-534 CB-634C CB-634D CB-334E CB-334D CP-563 CP-323 CB-335E CB-335D CP-553 CB-314 CP-533 CS-573C CS-573D CS-683E GENERATOR SET DE1400 G3520 G3516 G3512 G3508 3508 3412C 3304B G3306 3516 3512 D300GC 3512B GENS C18 GEN SE D1250 D550GC 3516C GEN G3516B G3516C D1000 G3516E D600 GC G3516H 3508C 3508B C9 DE1250S 3516B GEN C2.2 3306B D250GC G3512H G3406 C13 XQ375 XQ35 C13 XQ350 G3412 3412 C32 GEN SET CG137-12 C18 C15 C32 GENSET C15 I6 DG200 C18 MARINE GS CG137-08 C1.1DE9.5 3456 C9.3 DE1500 DE400SGC C2.2DE18E3 DE1000S C9 GEN SET C27 DE350SGC C32 DG175 D800 C15 GEN SE DE400GC C175-20 C175-16 G3412C DE1250 G3520C G3520B G3520E G3520H 3512C 3512B 3408C C2.2 GEN S 3406C C1.1 3406E C1.5 C3.3DE33E0 3516C 3516B 3516E EJECTOR TRUCK D400E II 740B 740 730 COMBAT VEHICLE ENGINE C13 ROAD RECLAIMER RM800 RR-250B RM400 RM600 RM500B RM-350B RM500 RR-250 ENGINE – MACHINE 3516C 3116 3114 C27 3304 3306 C4.4 3408 3208 CHALLENGER 65 75 75D 75C 75E 95E 70C MT865 MT855 65C 65B 65E 65D MT845 MT835 85C 85E 85D MTC855 MTC865 MTC835 MTC845 BOOM 120C OFF-HIGHWAY TRUCK D10R TRUCK 773G LRC 793F XQ 775G 775F 793F OEM 775E 775D 777C 777B 777D 777G 777F 775G OEM 785 789 793 797 770G 795F XQ 793D 793B 793C 793F 772G 773E 773D 773G 797F 773F 797B 773B 769 772 770 777 775G LRC 794 AC 793F CMD 772G OEM 789C 789D 789B 769B 770G OEM 769D 769C 69D 785G 773G OEM 785C 785D 785B 795F AC 793F AC MT4400D AC SNOW BLOWER SR321 SR318 SR21 SR18 SR17 COMPACTOR CB8 CB7 CB10 CB13 CB15 CB16
